4tnv98 12990701331 Yanmar Engine Overhaul Gasket Kit 72990792760
Product Description

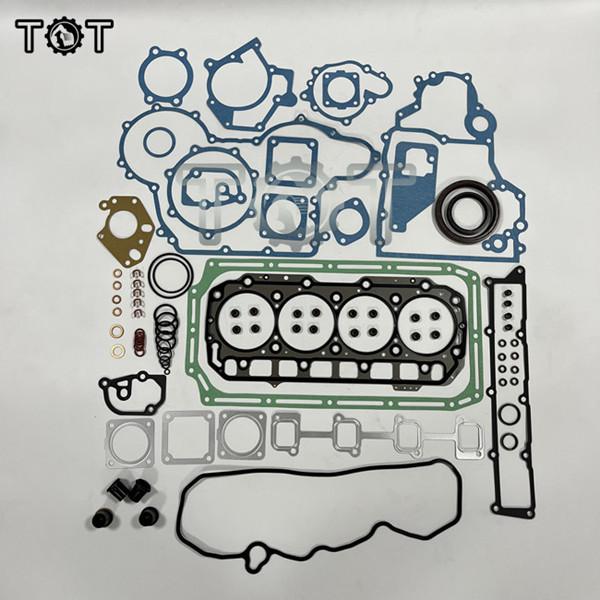

Engine overhaul package (including all gaskets, oil seals, valve oil seals,
cylinder gaskets, oil pan gaskets, crankshaft head oil seals, crankshaft rear oil seals, etc.)
Full gasket kit requirements for structure and materials are: sufficient strength and heat resistance under
the action of high temperature, high pressure and highly corrosive gas; Many damaged or deteriorated,
corrosion resistant; It has certain elasticity and can compensate the unevenness of the joint surface to
ensure sealing; Long service life.

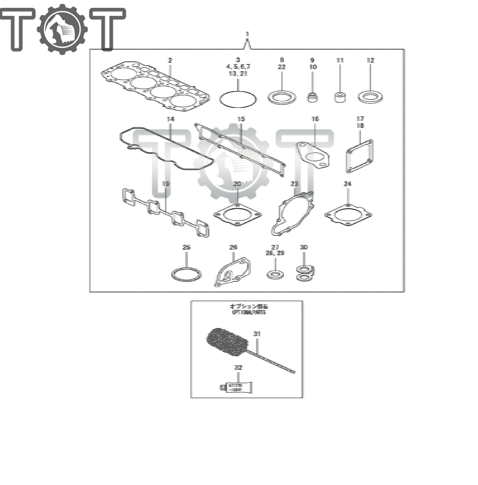

| Pos. | Part No | Qty | Parts name | Comments |
| 1. | 729927-92660 | [1] | GASKET SET(NON-ASB.) | (1) OPTIONAL PART. |
| 2. | 129907-01331 | [1] | GASKET,CYLINDER HEAD | |
| 3. | 129900-32030 | [2] | O-RING P20 | |
| 4. | 129900-32040 | [1] | O-RING P14 | |
| 5. | 24311-000070 | [1] | O-RING 1A P-7.0 | |
| 6. | 24351-030750 | [1] | PACKING, 3075 | |
| 7. | 24311-000320 | [2] | O-RING 1A P-32.0 | |
| 8. | 22190-220002 | [1] | SEAL WASHER 22S | |
| 9. | 119803-11340 | [8] | SEAL, VALVE STEM(EXH | |
| 10. | 124160-11340 | [8] | SEAL, VALVE STEM(INT | |
| 11. | 119802-11870 | [4] | PROTECTOR, NOZZLE | |
| 12. | 119625-11880 | [4] | SEAT, NOZZLE | |
| 13. | 24311-000120 | [8] | O-RING 1A P 12.0 | |
| 14. | 129933-11310 | [1] | GASKET, BONNET | |
| 15. | 129907-12110 | [1] | PACKING(INT.MANIFOLD | |
| 16. | 129927-13920 | [1] | GASKET(EGR-V OUT | |
| 17. | 119129-77020 | [2] | GASKET | |
| 18. | 121850-77021 | [1] | GASKET, (NON-ASB.) | |
| 19. | 129900-13251 | [1] | GASKET | |
| 20. | 129930-13201 | [1] | GASKET, SILENCER | |
| 21. | 24341-000530 | [1] | O-RING 1A S-53.0 | |
| 22. | 22190-080002 | [7] | SEAL WASHER 8S | |
| 23. | 129900-42020 | [1] | GASKET, CW-P | |
| 24. | 121850-49540 | [1] | GASKET, THERMOSTAT | |
| 25. | 121850-49550 | [1] | GASKET, THERMOSTAT | |
| 26. | 129900-49870 | [1] | GASKET, CASE | |
| 27. | 23414-080000 | [1] | GASKET 8, ROUND | |
| 28. | 124465-44950 | [1] | GASKET 16 | |
| 29. | 129150-49360 | [1] | GASKET 10 | |
| 30. | 123907-59550 | [5] | PACKING,FUEL RETURN | |
| 31. | 129400-92450 | [1] | FLEX HONE | (1) OPTIONAL PART. |
| 32. | 977770-1207F | [1] | GASKET.LIQUID | (1) OPTIONAL PART. |
